Product Description
Arrma Felony Resto Mod 6S BLX Street Bash 1/7 4WD RTR, Orange
The 1/7 scale ARRMA® FELONY™ 6S BLX Street Bash 4WD RTR brings retro mod style to the BLX platform. Fast and tough, it can reach 80+ MPH speeds out of the box over on-road, dirt and oval tracks — and includes telemetry-capable Spektrum® Smart electronics.
Inspired by the muscle cars that shaped the American auto industry in the 1960s and 70s, the 1/7 scale FELONY™ 6S BLX 4WD RTR tops off a tough and powerful ARRMA® brushless platform with stunning retro style — ideal for intermediate-level drivers who are eager to experience street bashing or drag racing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). With its sleek muscle car body and large rear tires, the FELONY™ 6S BLX looks right at home blasting at high speeds on-road, over dirt roads and on oval tracks.
The multi-part, undercut muscle car body design with an aerodynamically adjustable wing delivers standout street bashing style. It can also be customized with the included accessory kit and decals to provide scale muscle car looks the way YOU want them. The FELONY™ 6X BLX Street Bash RTR's eye-catching appearance extends to the realistic 5-spoke wheels mounted with dBoots® Hoons™ all-road tires. For authentic muscle car handling, ARRMA® engineers have included regular front and larger rear tires, with the front and rear gearbox ratios matched to the tire sizes.
Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts plus all-metal diff outdrives and gearbox internals. Its toughness is reinforced with a center chassis brace. The adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers. Push the throttle to the max — the FELONY™ 6S BLX Street Bash RTR is made to take it.
Speaking of throttle…ARRMA® has equipped the FELONY™ 6S BLX Street Bash 4WD RTR with the 3-channel Spektrum® DX3™ radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle's brushless power system also features Spektrum® Firma™ Smart components, so it's easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard™ app for iOS or Android, available for free at the App Store or Google Play.
Features at a Glance:
- Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)
- Compatible with Spektrum® Dashboard™ app for iOS or Android
- ARRMA® ADS-15M Waterproof Servo
- Spektrum® Firma™ 150A Smart ESC
- Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D input gears
- Muscle car handling with regular front and larger rear tires
- Front and rear gearbox ratios matched to tire sizes
- Customizable scale muscle car looks
- Includes interchangeable accessory kit and decals
- Multi-part undercut body design
- Adjustable front and rear body mounts
- Aerodynamically adjustable wing
- 3mm Plate, 6061-T6 anodized aluminum chassis
- Center brace for maximum durability
- Heavy-duty drivetrain with durable steel driveshafts throughout
- High-speed center driveshaft support
- Three oil-filled metal gear diffs
- All-metal diff outdrives and gearbox internals
- Oil-filled, adjustable, anodized aluminum shocks
- Black-anodized aluminum front and rear shock towers
- Front bumper and splitter
- Rear diffuser with exhaust detailing
- Waterproof* receiver box
- Large battery trays
- Five-spoke wheels
- Durable wheel hubs
- dBoots® Hoons™ all-road tires
- 2-year limited warranty (see manual for details)
* For details on waterproof standards, please refer to the product instruction manuals
In-Depth Features:
Classic Muscle
Awesome resto-mod muscle car styling.
Customize Your Ride

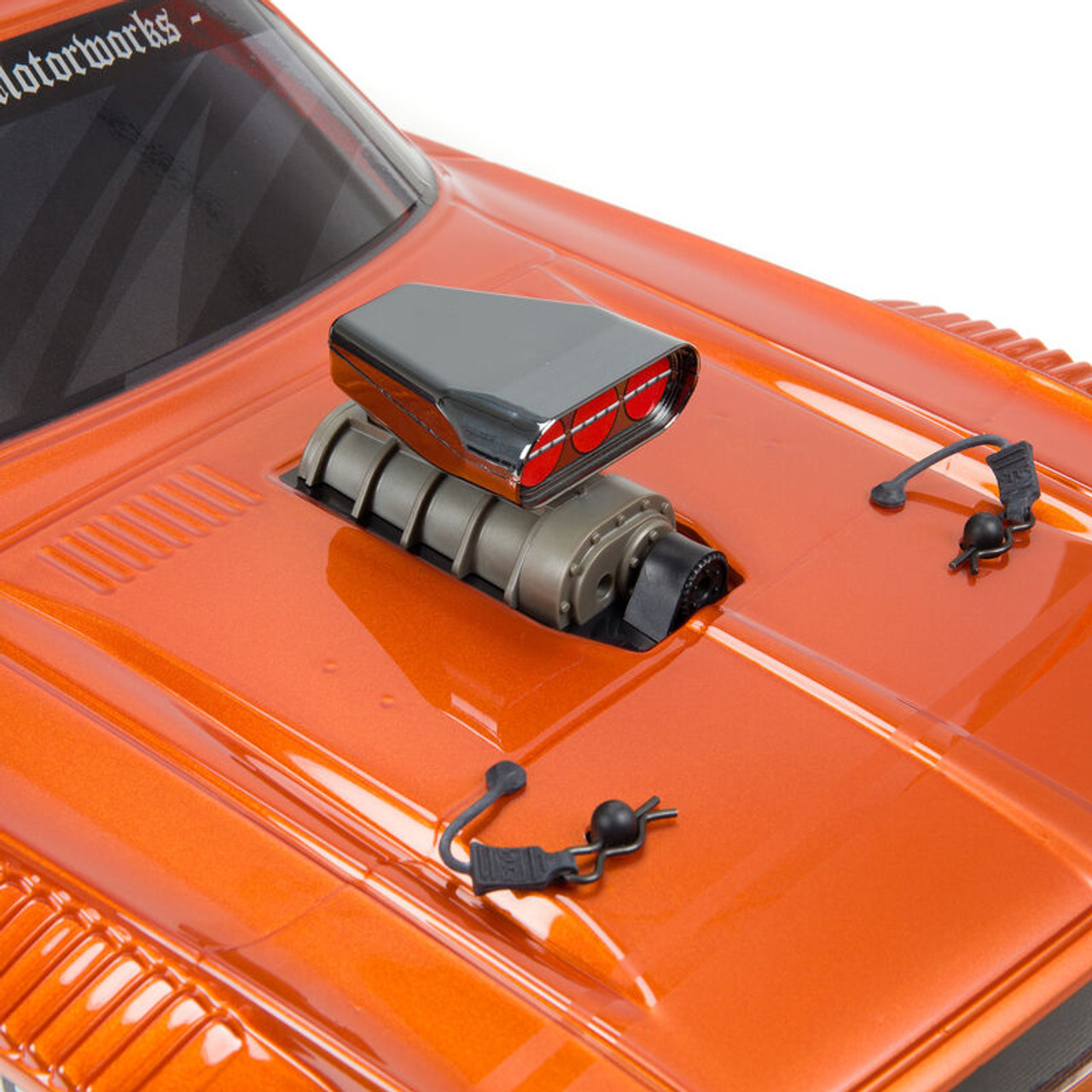

Change the look of your model with the included engine intake and cooling accessories pack.
Tunable Aero
Tune your wing's aerodynamic stability how you want it.
Dual-Purpose
Front splitter adds down-force and stability. Highly detailed bumper adds awesome ARRMA looks.
All-Road Aggression
dBoots HOONS tires designed for extreme all-road action. Classic 5-spoke wheels.
Bigger Tires in the Back
Wider and larger diameter rear tires add to the resto-mod muscle car style. Front and rear gearbox ratios are matched to the tire size.
Well Supported
The included center driveshaft high-speed support set prevents vibrations and increases drive-train durability.
Heavy Duty
Tough A-arms and drive-train components that keep you bashing for longer.
Captured and Sealed
Captured ball ends that will never pop off and hub nut o-rings.
Safe-D First
Input gears are keyed to the drive cups composite sleeves to fortify the retention of the drive cup set screw.
Having It Large
Large battery trays allow you to fit up to 7.09" (180mm) x 2.17" (55mm) x 2.76" (70mm) size batteries.
Arrma ADS-15M Servo
- Strong, metal gears used throughout
- Waterproof, dustproof case
- 25 tooth output spline
- Torque: 14kg-cm (194oz-in) @6V
- Speed: 0.16sec/60deg @6V
- Dimensions: 40x38x20mm (industry standard size)
Spektrum Firma ESC
- Waterproof, dustproof design
- 150A, 6S LiPo ready (3S, 4S, & 6S compatible)
- Spektrum Smart Technology
- Fitted with reliable IC5 connectors (EC5 compatible)
- Integrated fan for reduced heat during extreme running
- High Quality 10awg wires
- Low voltage cut-off and thermal overload protection
- User programmable punch, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings
Spektrum Firma Motor
- 2050Kv 4074 size 6S brushless motor
- Beautifully etched aluminum can
- 4-pole construction for smooth, consistent power
- 4mm gold bullet connectors for reliable and efficient connection
- Black anodized aluminum motor can for increased heat dissipation
- Super strong 5mm shaft
- Groove at the end of the motor shaft allows the installation of a pinion retaining E-clip
Spektrum DX3 Radio and SR6110AT AVC Receiver
- Ergonomic steering wheel for precise control
- On-the-fly adjustable AVC gain for personalized handling
- Lightweight and ergonomic design for long bashing
- 3 channel radio system
- 2.4GHz connection built around DSMR technology
- Full-range telemetry capabilities
Spektrum Dashboard
DX3 Radio system can be equipped with the Spektrum Dashboard
Requires:
- Spektrum Bluetooth Module *
- DX3 Smart Phone mount *
- Smart Phone with the free Spektrum Dashboard App *
Download the free Spektrum Dashboard app for your smart phone at your preferred app store
*Optional items that need to be purchased separately
Specifications:
Approximate Assembly Time: Less than an hour
Ball Bearings: Full set
Battery Recommendations: 2x2S or 2x3S LiPo (Hard or Soft-Case) (Sold Separately)
Battery Tray Dimensions: 7.09 x 2.17 x 2.76" (180x x55 x 70mm)
Body: FELONY, Screen printed, Decaled, Trimmed
Bushing Material: Metal
Charger: Sold Separately
Chassis: 0.12 in (3mm) Plate, 6061-T6 Aluminum
Completion Level: Ready-To-Run
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: F:8.05:1, R:8.83:1
Front Track: 12.13 in (308mm)
Internal Gear Ratio: F: 2.8:1, R: 3.07:1
Max Battery Dimensions: 5.5 x 1.85 x 1.5" (140 x 47 x 38mm)
Motor Type: Brushless - Sensorless
Pinion: 16T
Product Height: 7.56" (192 mm)
Product Length: 28.54" (725 mm)
Product Weight: 11lbs (4990g)
Product Width: 12.91" (328 mm)
Radio: Included
Rear Track: 12.91 in (328mm)
Receiver: Included
Scale: 1/7
Servos: Included
Shock Type: 3.03 in (77mm) FR, 3.43 in (87mm) RR. Aluminum body, oil-filled
Speed Control: Included
Spur Gear: 46T
Suspension: Independent
Vehicle Type: On-Road
Wheelbase: 15.98 in (406mm)
Includes:
- (1) 1/7 ARRMA® FELONY™ Resto Mod Street Bash 6S BLX 4WD RTR
- (1) Spektrum® Firma™ 150A Smart ESC (installed)
- (1) Spektrum® Firma™ 4074 2050Kv Brushless Motor (installed)
- (1) ARRMA® ADS-15M Waterproof Servo (installed)
- (1) Spektrum® SR6110AT AVC Receiver (installed)
- (1) Spektrum® DX3™ DSMR® Radio
- (1) Product Manual
Needed to Complete:
- (2) 2S or 3S LiPo batteries with IC5/EC5 connector
- Compatible charger
- Safe LiPo charging bag
- (4) AA transmitter batteries
