Product Description

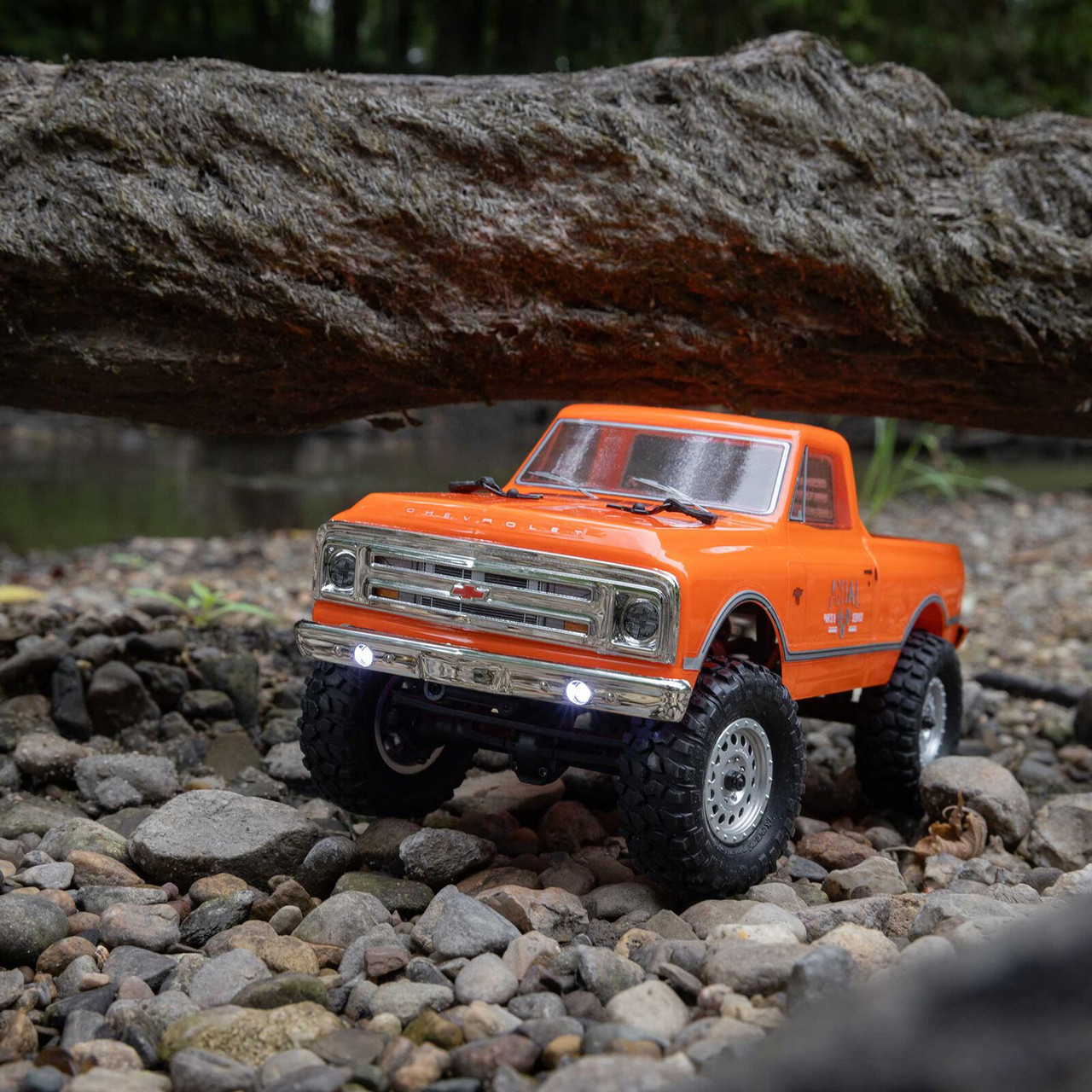

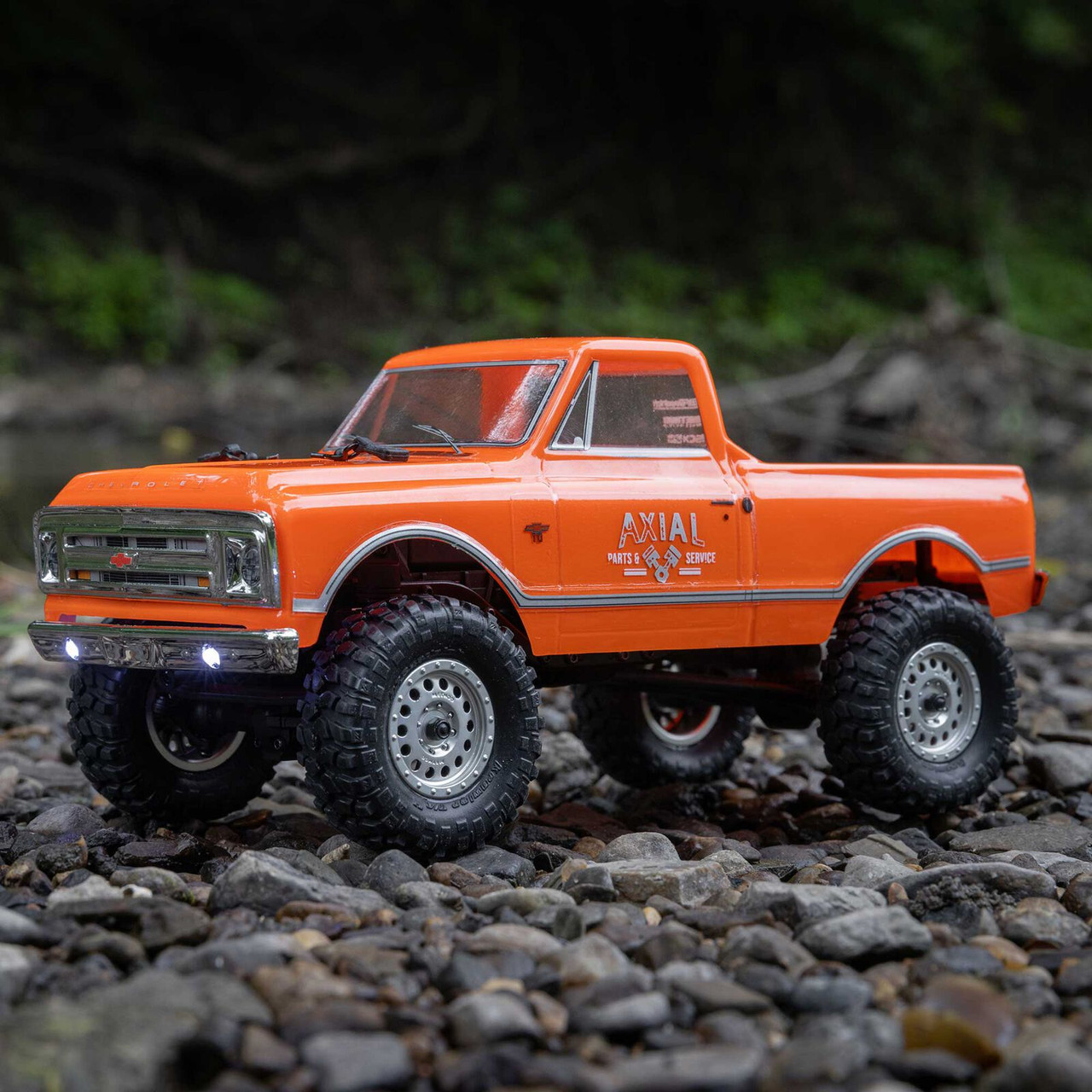

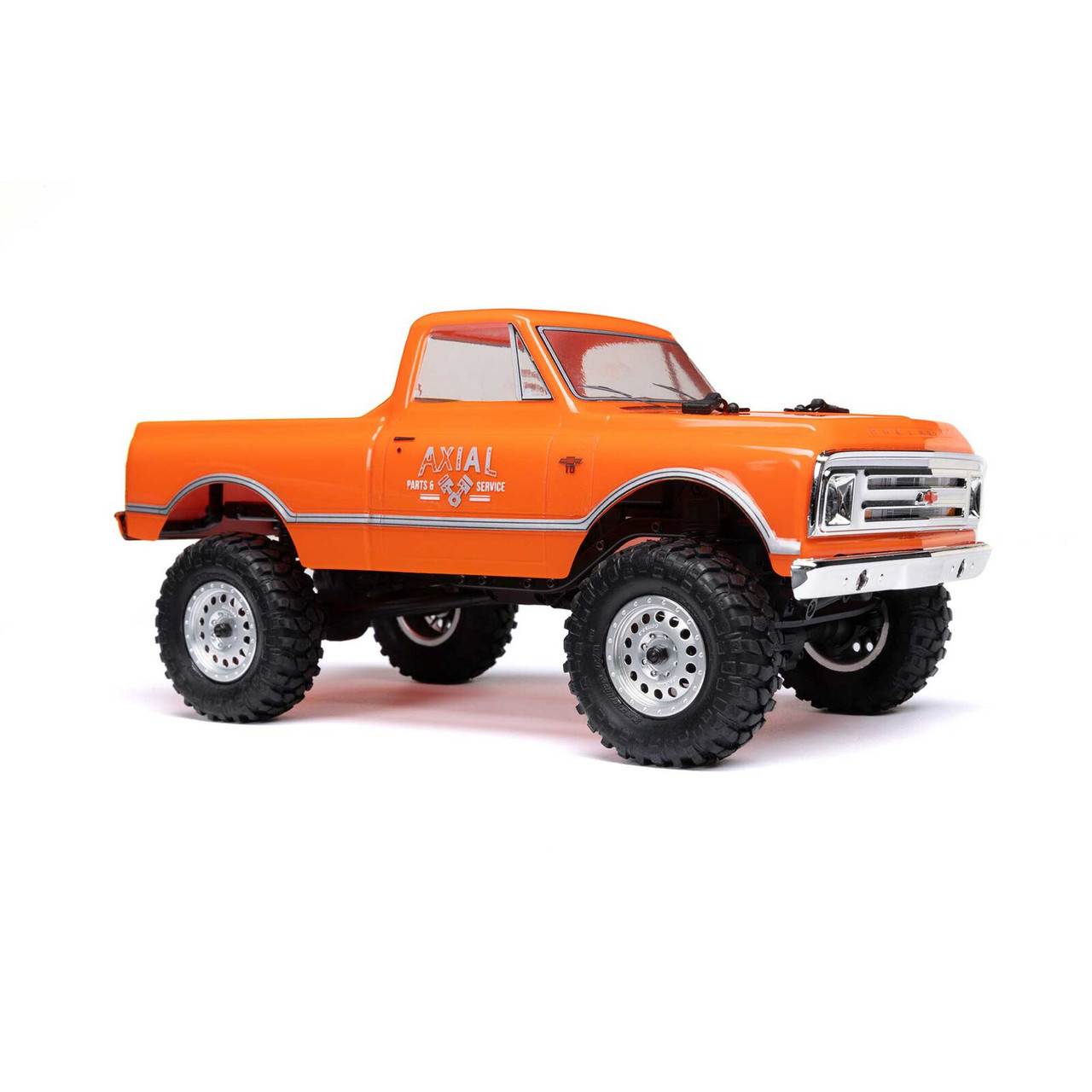

Axial 1/24 SCX24 1967 Chevrolet C10 4WD Brushed Truck RTR, Orange
Introduced by GM in 1967 as a multi-purpose workhorse, the full-size Chevrolet C10 pickup holds its own on the trails even today. It refuses to show its age or diminish in popularity. As one of the best-selling Axial® micro rock crawlers of all time, the 1/24 scale SCX24 1967 Chevrolet C10 not only recreates the 1:1 original’s classic styling but also delivers exceptional value in an RC rig — value that’s better than ever in this updated version.
Plush oil-filled shocks have been added for a suspension that soaks up bumps and provides a stable ride over rugged terrain. Reliable Spektrum electronics are now included, and there are two fresh body colors to choose from. Completely assembled, fully equipped, and improved with key upgrades, the SCX24 Chevy C10 is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts.
The SCX24 Chevy C10 makes any location the scene for rock crawling fun. Its versatile size opens up almost any setting to spur-of-the-moment RC crawling expeditions. Set up an indoor obstacle course in any room by placing objects on the floor, a table, or desk. Outdoors, collect some twigs and small rocks, dig a few holes, and create a challenging trail for adventuring in the open air.
The SCX24 Chevy C10 has all the performance capabilities of the proven Axial SCX24 platform. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase the ground clearance. Realistic steel C-channel frame rails stand up to hard knocks. The detailed scale body rides on licensed 1:1 Method wheels and BF Goodrich tires that tackle on-road and off-road challenges with ease.
Features
- Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
- Plush oil-filled shocks
- Realistic steel frame rails for added strength
- Spektrum SLT2 2.4GHz radio system
- Spektrum 350mAh LiPo battery and USB charger
- Two LED lights in the front bumper
- 080-size brushed motor
- True, full-time 4-wheel drive
- Metal worm drive gear on front and rear axles
- 3-Link front and 4-link rear suspension
- Fully equipped and ready-to-run
- Licensed wheels modeled after 1:1 Method Wheels
- Licensed tires modeled after 1:1 BFGoodrich Tires

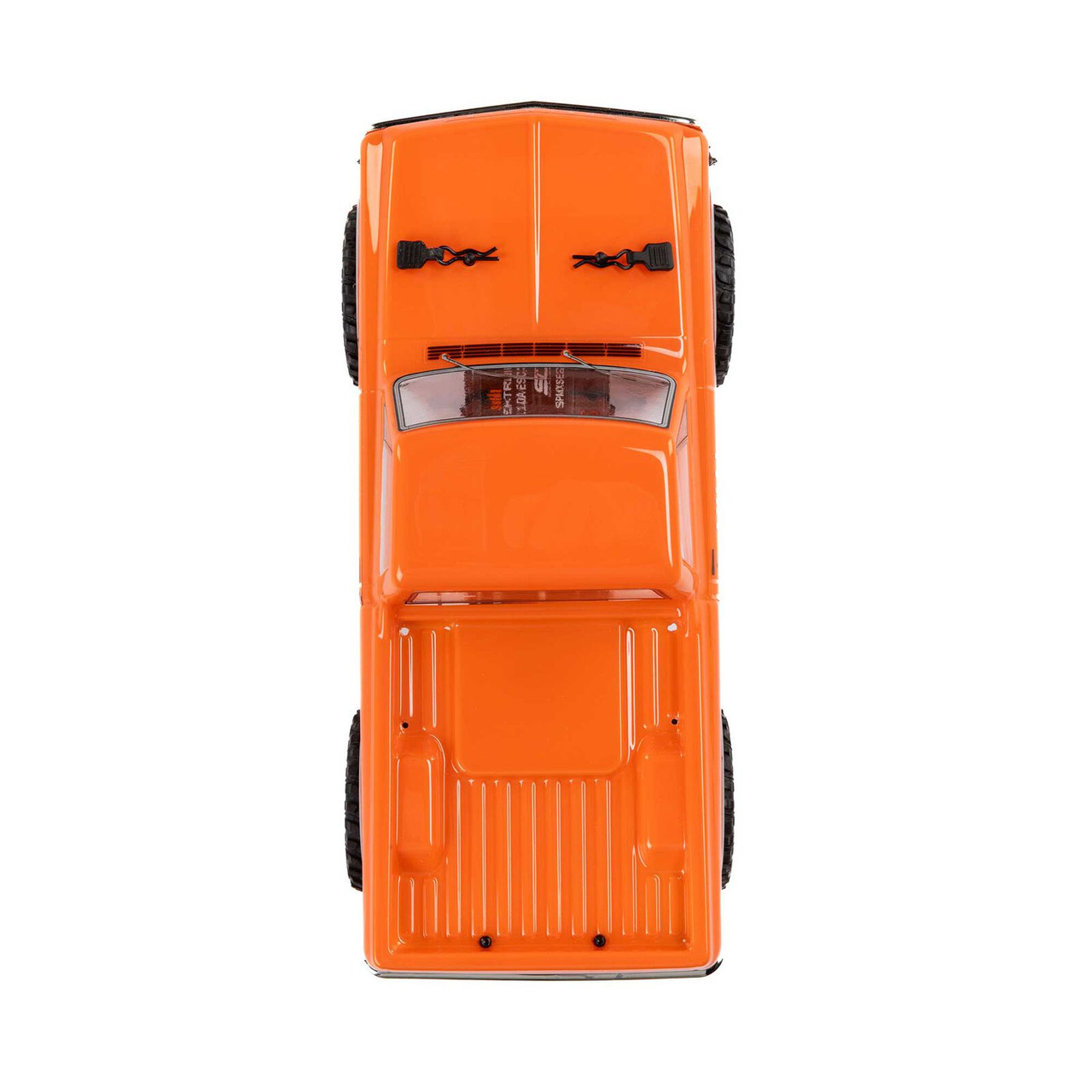

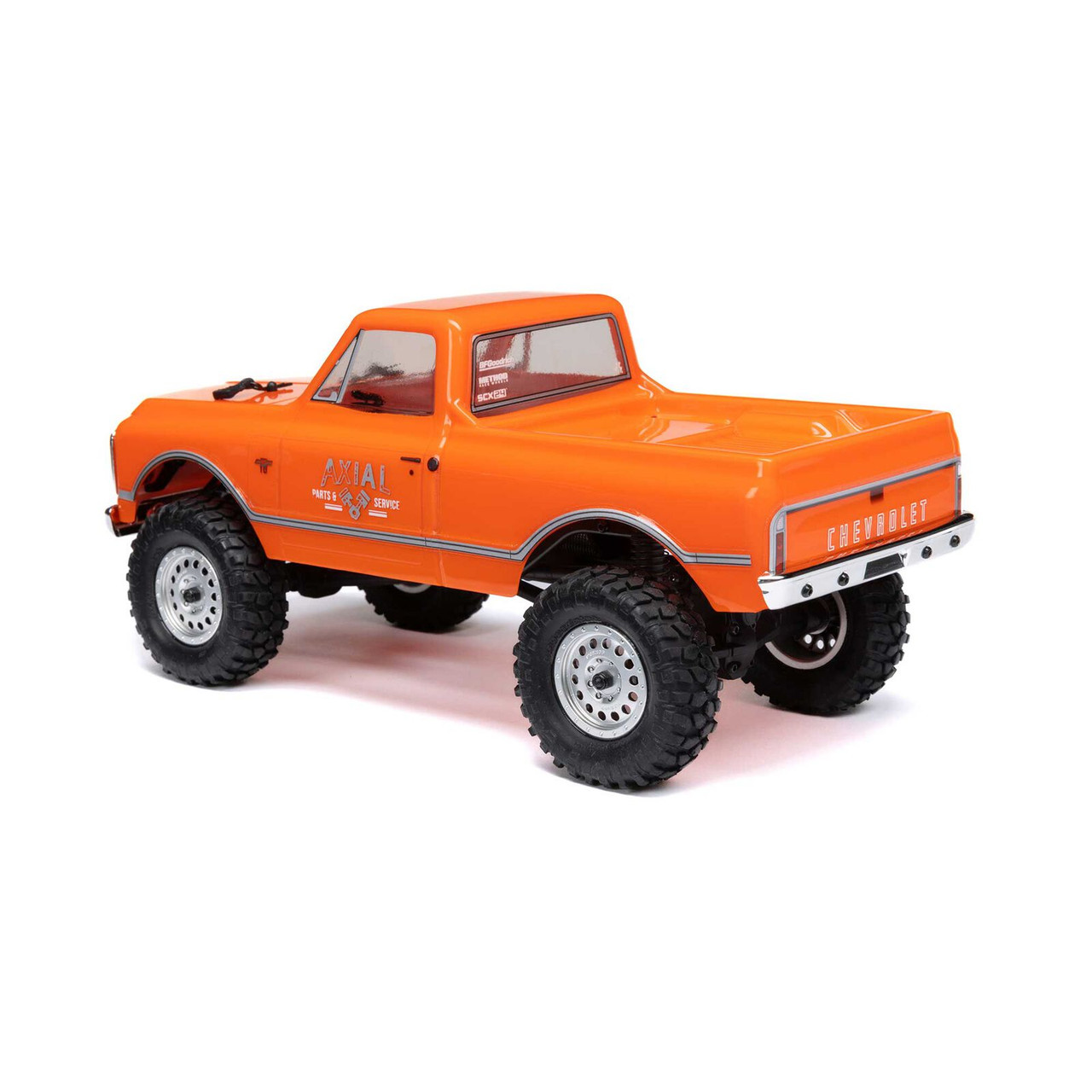

1967 CHEVROLET C10 BODY
The full-size 1967 Chevrolet C10 had the sturdy look of a do-it-all workhorse, and the Axial SCX24 1/24 scale RC rig follows suit. Its detailed scale body comes factory-finished in two new color options. For quick battery access, just remove two clips to tilt back the body.
WORM GEARS
The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes.

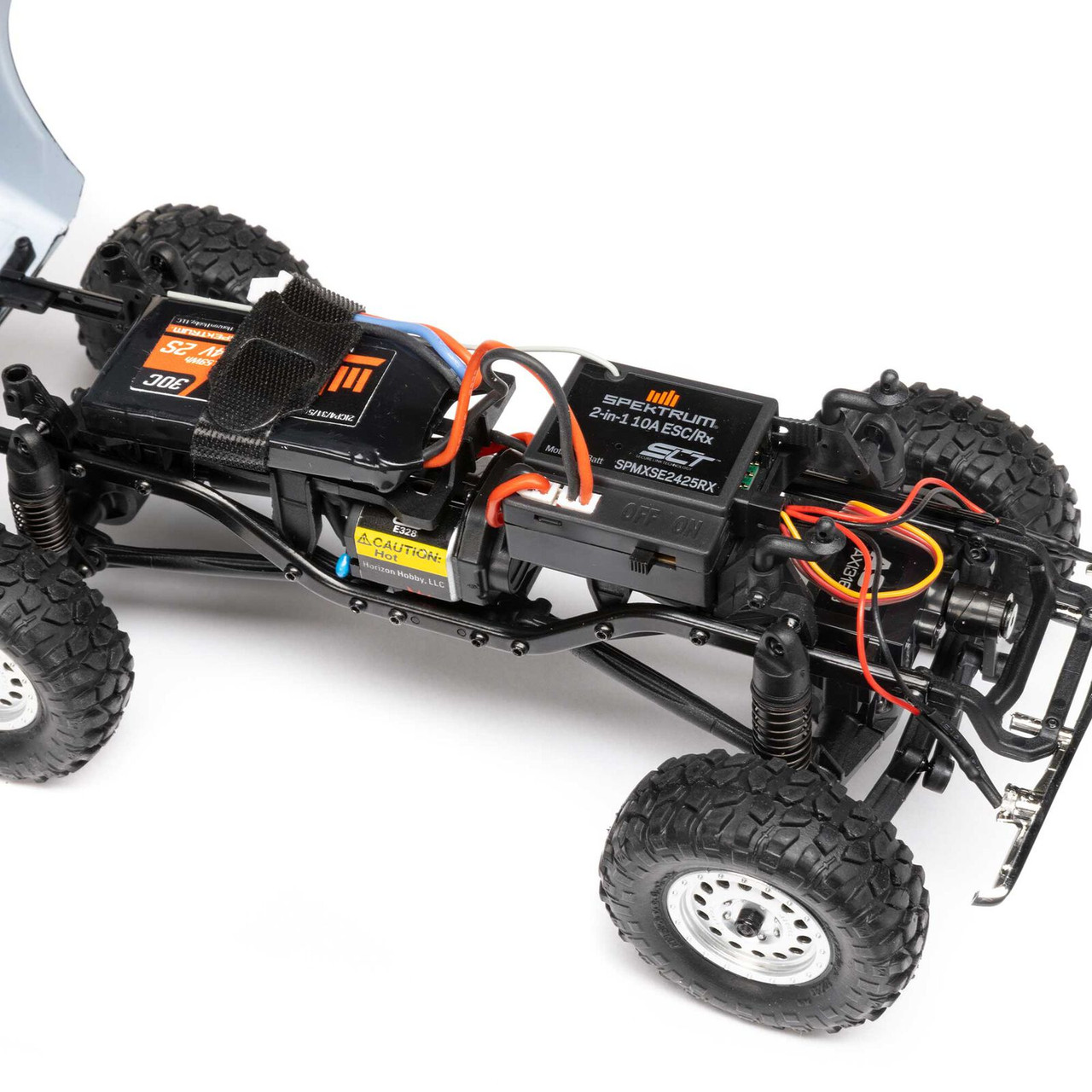

STEEL C-CHANNEL CHASSIS FRAME RAILS
Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.
FRONT AND REAR SOLID AXLE HOUSINGS
The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.
4-LINK REAR SUSPENSION
The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.
OIL-FILLED SHOCKS
Oil-filled shocks have been added that allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.
DURABLE STEEL AXLES
Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.
SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
DYNAMITE BRUSHED MOTOR
The included Dynamite 88T 080-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.
SPEKTRUM SLT2 2.4GHz RADIO SYSTEM
The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.
FULL BALL BEARINGS
Just because the SCX24 is small doesn't mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.
METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES
The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off-road racing. BFGoodrich Krawler™ T/A® KX tires have won more rock-crawling championships than all other tires combined. The Axial version captures the same aggressive look in 1/24 scale.

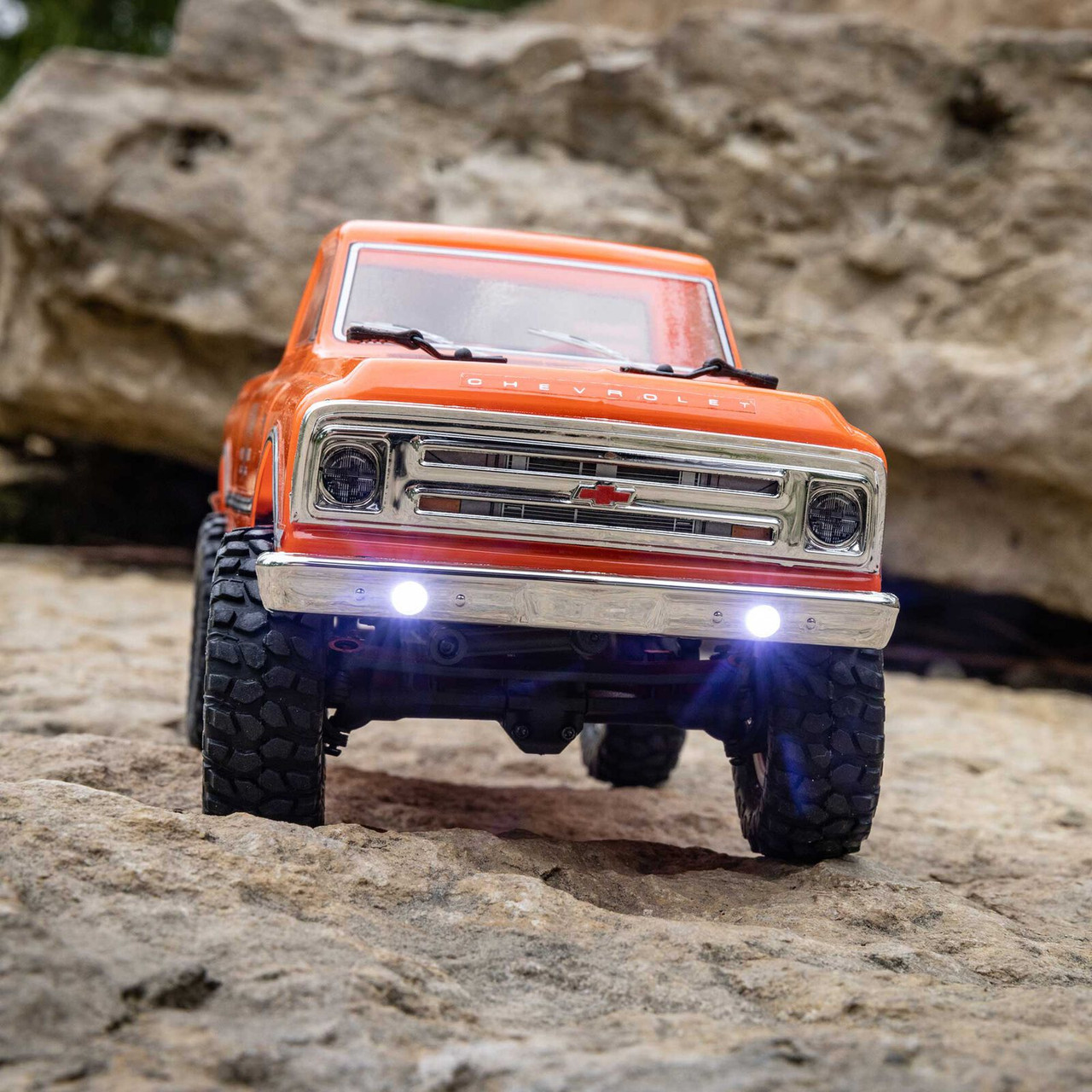

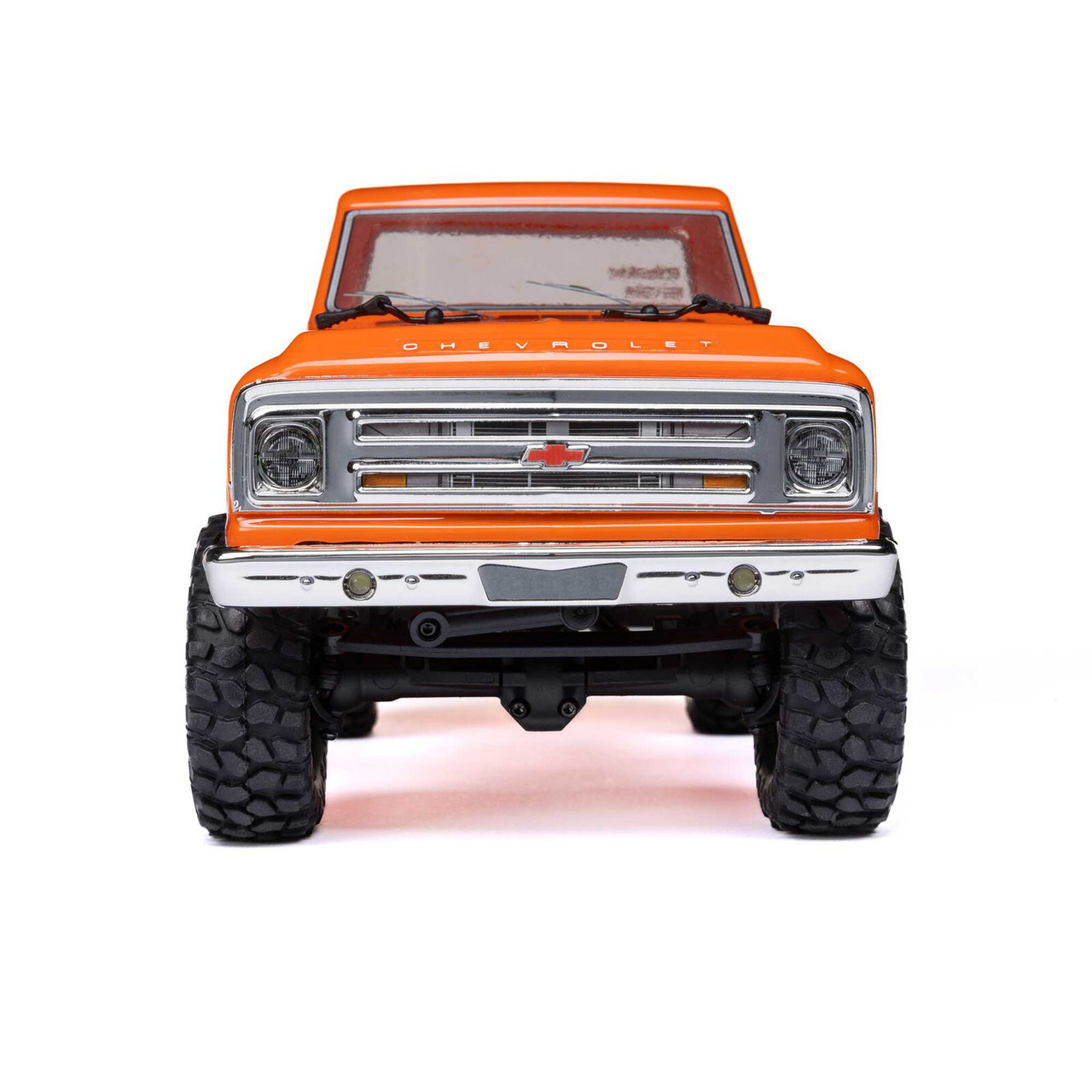

LED LIGHTS INCLUDED
Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Body: Trimmed and painted Axial 1967 Chevrolet C10 pickup
Bushing Material: Metal
Charger: Included
Chassis: Stamped steel rails
Completion Level: Ready-To-Run
Differential: Worm gear 16T/4T
Drivetrain: 4WD
Front Track: 3.9 in (99.5mm)
Power Type: Electric
Ground Clearance: 1.06" (27mm)
Motor Size: 180
Outer Diameter: 1.88 in (48mm)
Pinion: 10T
Product Height: 3.6" (93mm)
Product Length: 8.6" (220mm)
Product Weight: 8.0 oz (0.22kg)
Product Width: 3.9" (100mm)
Rear Track: 3.9 in (99.5mm)
Receiver: Included
Scale: 1/24
Shock Type: Coil-over, Oil-filled, 0.9-1.3 in (24-33.4mm)
Spur Gear: 55T
Tire Tread: Nitto Trail Grappler
Water-Resistant: Yes
Wheelbase: 5.2" (133.2mm)
Wheel Type: Plastic
Wheel Width: .48" (12.4mm)
(1) Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR
(1) Assembled SCX24 chassis, drivetrain, and suspension
(1) Spektrum SLT2 2.4GHz radio system
(1) Spektrum 350mAh LiPo battery and USB charger
(4) AA transmitter batteries
(1) Product manual
The SCX24™ includes everything you need to get going.
