Product Description
***Stock Photo Used, See Below For Details***
Castle Creations 1/10 Sensored SV3 Sidewinder WP ESC 1406 Combo (7700kv)
This is the Castle Creations Sidewinder SV3 WP 1/10 Brushless ESC and Motor Combo, including a Neu-Castle 1406 7700kV Brushless and Sensored Motor. Castle’s Sidewinder ESC is now waterproof! The Sidewinder 3 can power crawlers on water filled trails, AWD's in rain soaked parking lots, and stadium trucks on adventures through muddy fields.Drivers can now give in to those irresistible urges to drive in the mud or rip through puddles without damaging their ESC.Designed for 1/10th
The Sidewinder 3 is a great fit for 1/10th off-road and on-road running up to 3S LiPo. It features updated circuitry for faster response time and improved reliability. As always, the Sidewinder 3 offers industry-leading software functions and USB programming capability via Castle Link USB adapter (sold separately).
You asked. Castle listened
For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by their customers, Castle has brought technological advancements together that will deliver unprecedented performance in our their Sensored motor Line.
Specifications:
ESC
- Input Voltage Range: 2s - 3s LiPo; 6 - 9 cell NiMH
- BEC Specifications: 5.0 volts fixed, 2 amps.
- Operating Environment: Waterproof* design allows for use in nearly any environment.
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes
- Cooling Fan: No
- Size: 1.93x1.48x0.79" (49x38x20mm)
- Weight (w/wires): 197 g / 6.9oz
- Connectors: 4mm female bullets for motor connection.
- Items Needed for Operation: Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
- Application Guidelines: 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies, Max. Recommended 2WD SCT Trucks up to 5lbs, stadium trucks, buggies, and on-road vehicles up to 4lbs.
- Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
- Telemetry Link Capable: No
- Input Voltage Range: 2-3S LiPo
- Kv: 7700
- Max. RPM: 100,000
- Length: 52.7mm
- Diameter: 36mm
- Weight (w/wires): 237g / 8.4oz
- Shaft Size: Length: 15.5mm
- Diameter: 1/8" (3.17m)
- Mounting Hole Specifications: M3 @ 25mm
- Cooling Fan: Optional
- Connectors: 4mm male Castle Bullet Connectors
Includes:
- Sidewinder 3 ESC

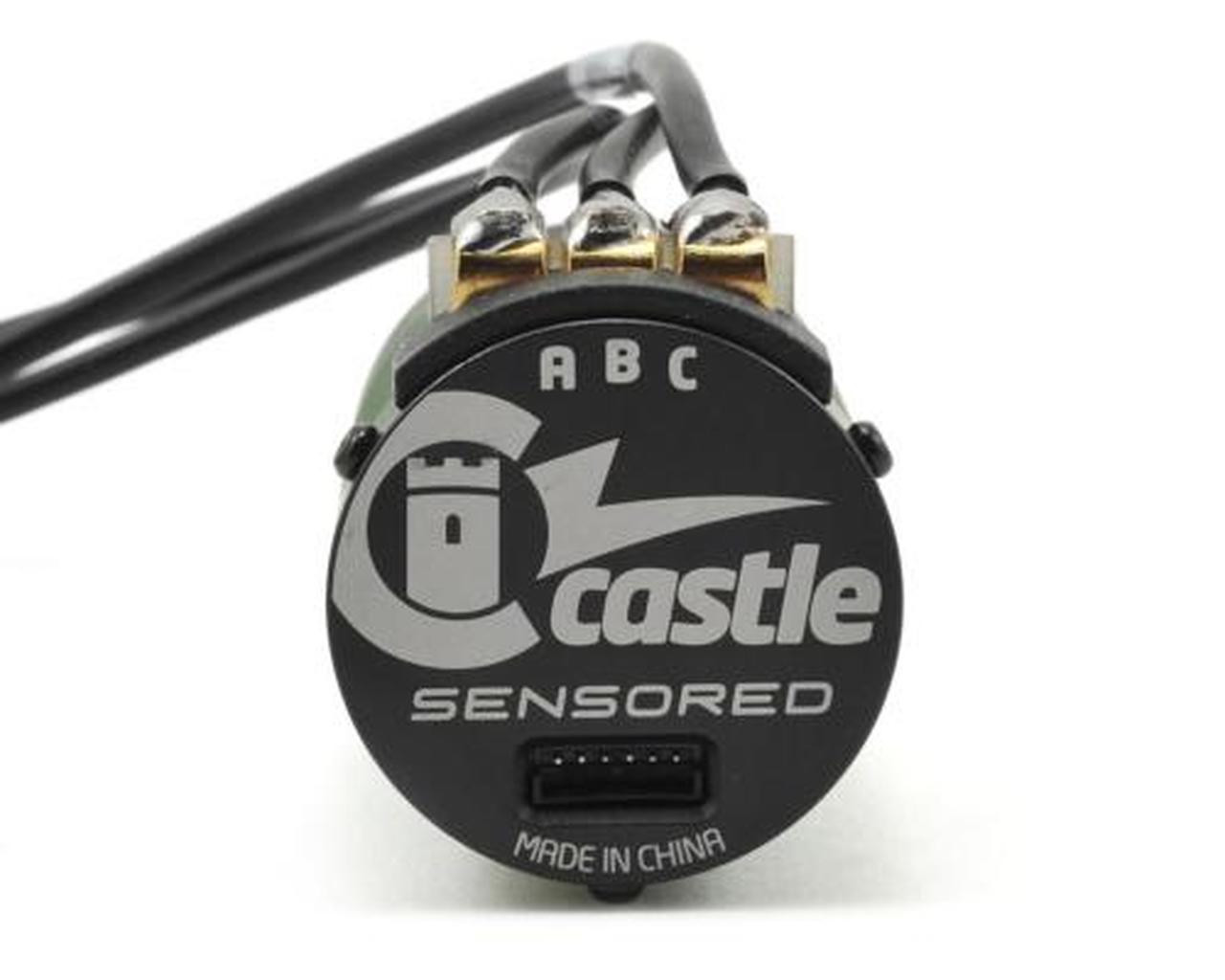

- Castle 1406 7700 Kv sensored** motor (with 3.2mm shaft)
*Not intended for use while submerged in liquid. If operated in wet conditions, rinse with fresh water to remove dirt or corrosives then fully dry unit.
Warranty Information:
Other Details
Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.Product Videos
Custom Field
KV 7700
