Product Description

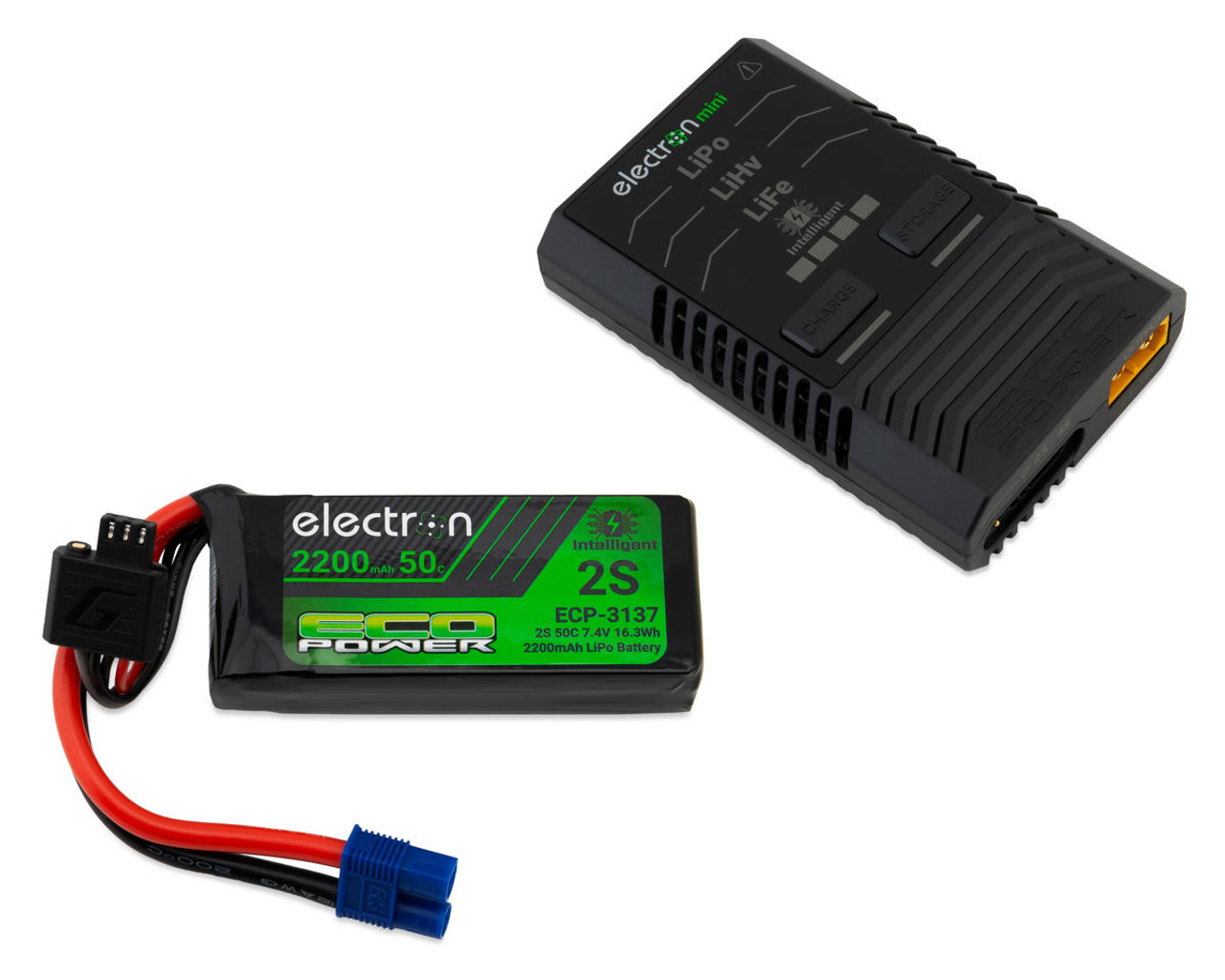

EcoPower Intelligent 2S 2200mAh EC3 LiPo Battery/"Electron Mini" Charger Bundle (SCX10 Series & Other 1/10) (ECP-1010)
The Intelligent 2S 2200mAh LiPo Battery and "Electron Mini" Charger Bundle from EcoPower makes charging your RC batteries easier, safer, and smarter. Designed for use with the SCX10 series and other 1/10 crawlers, this bundle offers a seamless charging experience with its advanced intelligent technology. Whether you're a seasoned hobbyist or new to the world of RC, this bundle simplifies the charging process and ensures your batteries are charged efficiently and safely.
Easier Charging with Intelligent Technology:
The Electron Mini Intelligent Charger takes the guesswork out of charging by automatically recognizing the connected battery type. When paired with an EcoPower Intelligent Battery, the charger immediately adjusts to the ideal settings, ensuring a hassle-free charging experience. The intuitive interface features just two buttons—Charge and Storage—making it easy to operate, while the progress bar provides a clear visual indicator of the charging process. The bundle also includes a 65W USB-C power supply, which is necessary to achieve the maximum 5A output on batteries up to 4S.
Smart Charging
Not only does the Electron Mini work flawlessly with EcoPower Intelligent Batteries, but it also provides exceptional value by supporting regular, non-Intelligent batteries as well. The charger automatically analyzes the charging curve to determine the optimal charge rate for non-intelligent batteries, typically charging at a 1C rate. A built-in warning light system alerts you to any issues, with troubleshooting information available in the manual, making this charger a versatile and reliable choice for all your RC battery needs.
Safety Information:
DO NOT leave a battery in your model when charging
DO NOT leave lithium batteries unattended when charging
ALWAYS balance charge lithium battery
ALWAYS use a LiPo Safe charging bag/box
YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
YOU MUST not over discharge lithium battery packs
READ & UNDERSTAND the instructions carefully before operating this batter.
Features:
- Intelligent battery recognition
- Simple two-button operation
- 65W USB-C power supply included
- Supports LiPo, LiHV, and LiFe batteries
- Automatic charge rate adjustment for non-intelligent batteries
- Progress bar display for charging status
- Warning light system for troubleshooting
- Includes XT60 to EC3 and XT60 to EC5 charging cables
- Compact and portable design
Specifications:
Charger
- Input Power: AC
- Input Voltage: 5-20V
- LiPo/LiHV/LiFe Cell Count: 2-4S
- NiMH/NiCd Cell Count: LiPo Only
- Pb Battery Voltage: LiPo Only
- Input Connector: USB-C
- Output Connector: XT60
- Charge Power: 60W
- Discharge Power: 3W
- Charge Current: 1-5A
Discharge Current Based on Battery Voltage
- Balance Current: 0.3A/Cell
- Dimensions: 3.35x2.16x0.83in (85x55x21mm)
- Weight: 2.24oz (64g)
Battery
- Nominal Voltage: 7.4V (2S)
- Capacity: 2200mAh
- Maximum Charge Rate: Not Available
- Discharge Rates
- Continuous: 50C
- Cell Configuration: 2S1P
- Watt Hours: 16.3Wh
- ROAR Approved: No
Connectors
- Battery: EC3
- Balance: Intelligent Connector
- Dimensions (LxWxH): 3.14x1.31x0.77in (79.75x33.3x19.6mm)
- Weight: 4.59oz (130g)
Includes:
- (1) Intelligent 2S 2200mAh LiPo Battery
- (1) "Electron Mini" Battery Charger
- (1) 65W USB-C power supply
- (1) XT60 to EC3 charging cable
- (1) XT60 to EC5 charging cable
- (1) Instruction manual
