Product Description

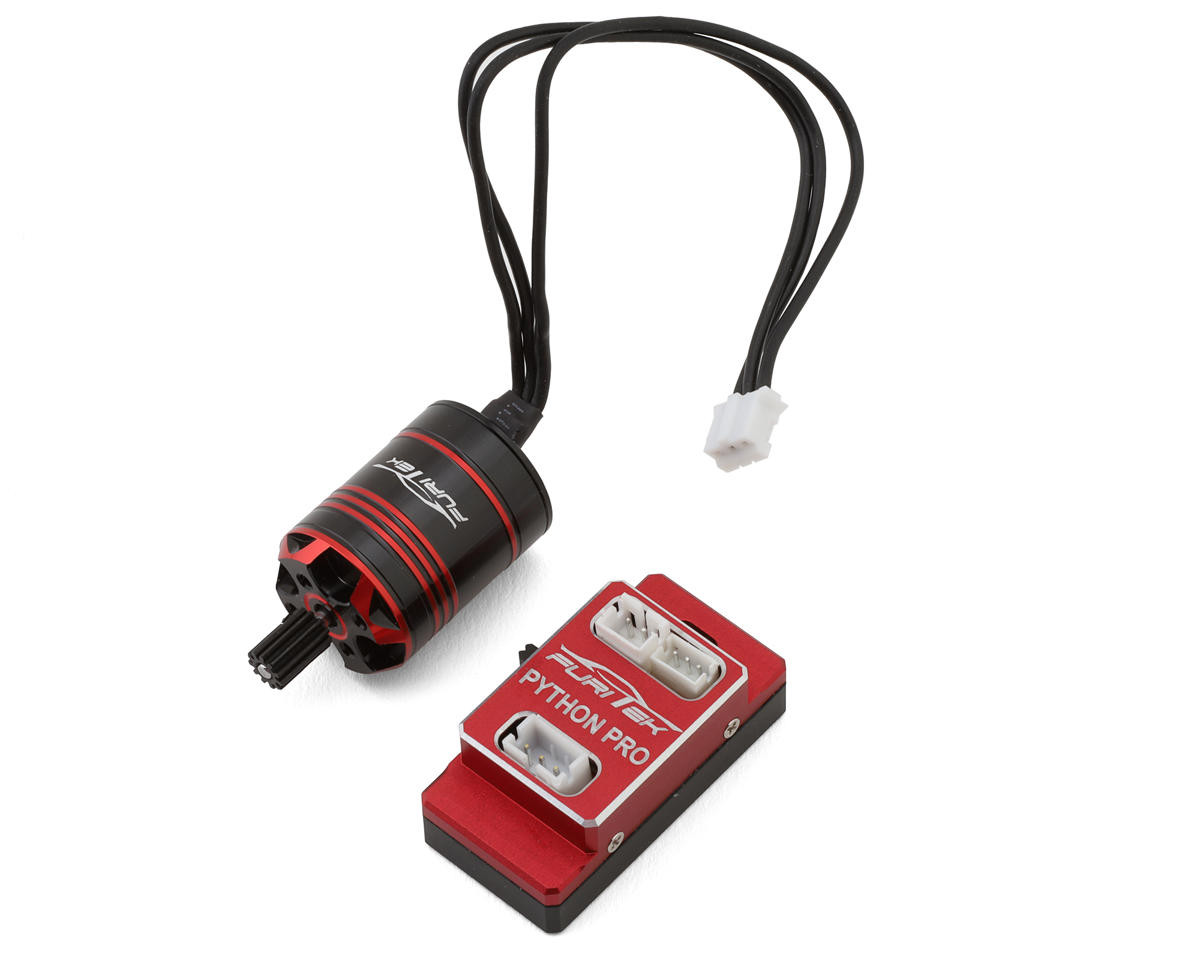

Furitek Traxxas TRX-4M Torpedo 118 Brushless Combo w/Python Pro 40A ESC & Cedar 3456KV Motor (FTK-FUR-2342)
TRX4M Torpedo Combo Overview:
The Furitek Python Pro 40A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 40 amp continuous rating, adjustable 5A BEC, up to 4S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. Designed to be a plug-and-play option for Micro rock crawlers, this is an excellent upgrade if you are looking to bring your micro crawler to the next level of high performance!
Furitek inrunner Cedar 1825 3456kV brushless motor incorporates the awesome features of an outrunner style motor but in the form of a sealed can making it resistant to the harsh rigors the elements can put your hardware through. With a 12-pole pepped-up High purity and higher temperature single copper windings and a sleek CNC machined 6061 T6 billet aluminum design, this motor is up for the challenge. This style of motor no longer has you worrying about the outside of the motor needing clearance to spin. Whether you take to the mountains or your own back yard this motor has the power you need to get over any obstacle!
Features:
- Python Pro ESC
- Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Water-proof CNC-machined aluminum case
- Built-in wireless
- Built-in HV switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
- Compact and lightweight
- Real-time telemetry up to 10Hz
- Cedar Motor
- 12 Pole inrunner design
- Element resistant
- Fancy black and red aluminum case
- Quiet and compact without sacrificing performance
- Extreme quality high temperature copper windings
- High strength steel pinion gear
Specifications:
ESC:
Input Voltage: 2S-4S LiPo
Waterproof: Yes
BEC: 5.5V-8.4V Switchable
Current:
- Continuous: 40A
- Peak: 70A
Dimensions (LxWxH): 1.57x0.78x0.6" (40x20x15mm)
Weight: 0.2oz (5.6g)
Motor:
Motor Type: Inrunner
KV: 3456kV
Pole: 12-Pole
LiPo: 2-3S
Power: 120W
Resistance: 0.170 Ohm
No Load Current(@10V): .07A
Size (Diameter x Length): 18x25mm
Weight: 0.7oz (20g)
Application: Micro Crawler
Includes:
(1) Python Pro ESC
(1) Cedar 1825 3456KV Brushless Motor with Pinion Gear

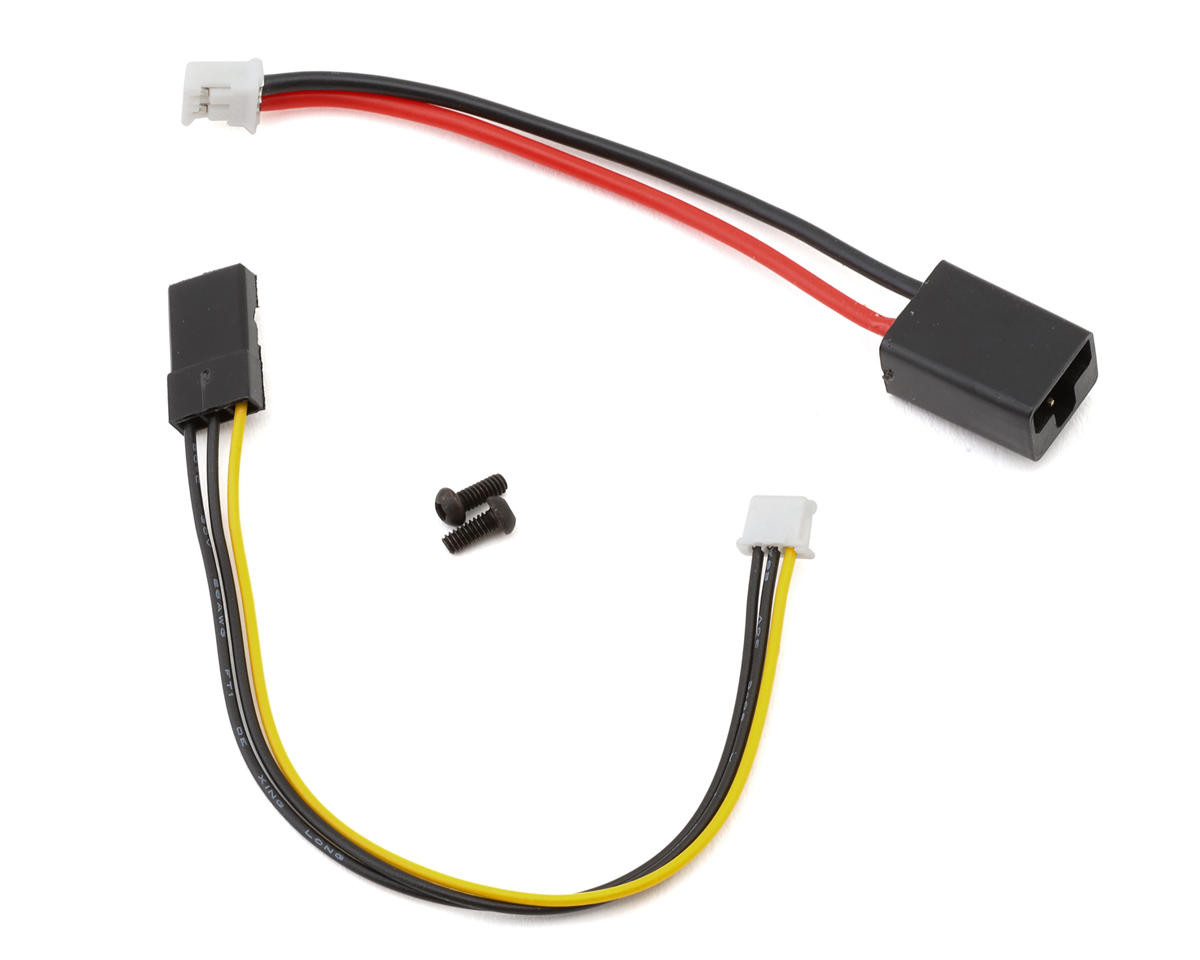

(1) Power Cable and ESC to Receiver Cable
