Product Description

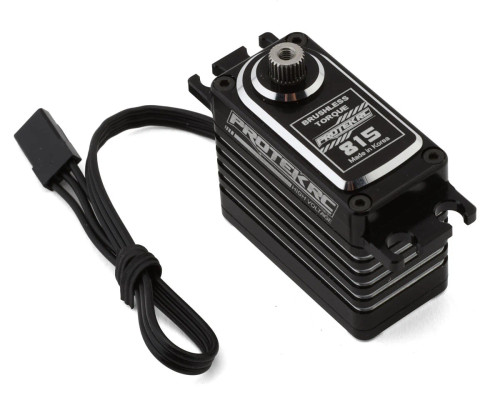

ProTek RC 815 Mid Profile High Torque Brushless Servo (High Volt / Metal Case) (PTK-815)
The 815 Mid Profile Servo brings together cutting-edge brushless technology and unmatched performance, delivering the holding power, speed, and precision that rival coreless servos. With the added advantages of brushless motors—greater efficiency and extended lifespan—this servo is the perfect choice for pro-level builds demanding top-tier reliability and accuracy. Housed in a sleek black anodized aluminum case for a premium look, the servo's design is both rugged and functional. The aluminum upper case ensures extreme durability, while the heat sink center case efficiently dissipates heat and reduces overall weight. Included is an aluminum single-arm clamping servo horn and a complete set of mounting washers for secure, long-lasting installation.
Features:
- Ideal for a 1/10 Off-Road Racing Platforms
- Brushless motor
- High voltage circuitry
- Full steel gears
- Full aluminum black anodized heat sink case
- Dual stepped offset spline
Specification:
- Application: 1:10 Scale
- Operating Voltage: 6.0V - 8.4V
- Operating Temperature: 14° to 140° F (-10 to +60° C)
- Operating Speed @ 7.4V: 0.055/60° sec
- Operating Speed @ 8.4V: 0.05/60° sec
- Dynamic Torque @ 7.4V: 713oz-in (51.3 kg-cm)
- Dynamic Torque @ 8.4.0V: 815oz-in (58.7 kg-cm)
- Motor Type: Brushless Digital
- Output Shaft: 25T
- Gears: Steel
- Weight: 64g
- Pulse/Frequency: 1520s / 333hz
- Dimensions: 39.5x20x35.75mm
- Length (Bottom to Mount): 24.3mm
Includes:
- (1) 815 Mid Profile High Speed Brushless Servo
- (1) Aluminum clamping servo horn
- Servo Hardware and grommets
