Product Description

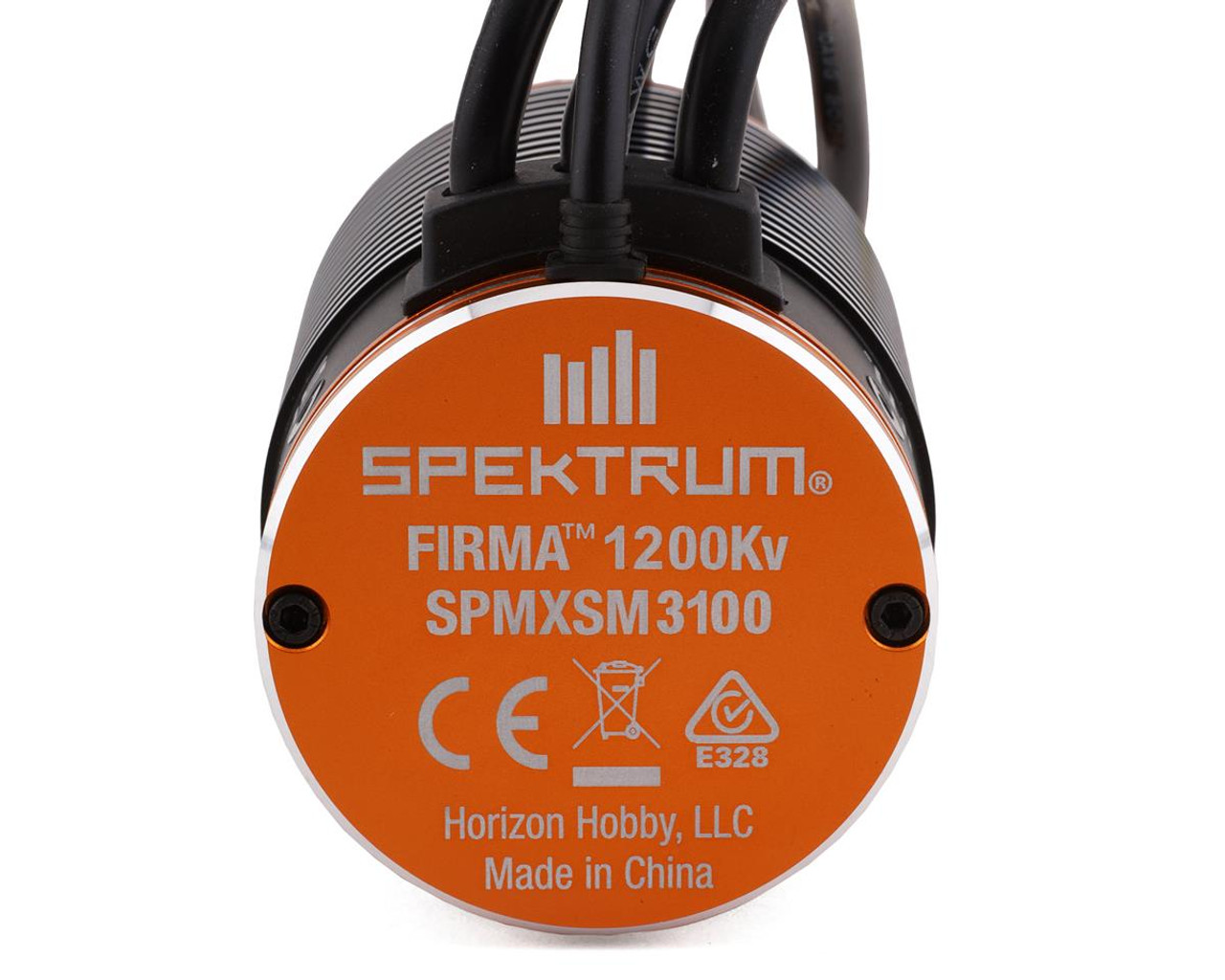

Spektrum 3100 Firma 1200Kv 1/6 BL Sensored Crawler Motor (SPMXSM3100)
The Spektrum RC Firma 1/6 BL Sensored Crawler Motor is a high quality motor made using premium materials. Made as a replacement for the Axial SCX6, this motor will also work as a great choice for giant scale crawlers, rock racers and trail trucks running on 2-4S LiPo's. This motor features a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and precision bearings for extreme performance. Package includes one motor.
NOTE: This motor will only work with the Spektrum Firma 120A Sensored Brushless Smart Crawlers ESC.
Features:
- Large 5684 can size to fit the demands of giant scale crawlers and scalers
- FOC (Field-Oriented Control) equipped
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
- 3.5mm gold plated bullet connectors
- Waterproof sensor wire with locking plug and gasket
- High-quality construction with precision ball bearings and hardened steel 5mm output shaft
Specification:
- Motor Type: Brushless
- Length: 3.3" (84 mm)
- Outer Diameter: 2.2" (56 mm)
- RPM/Volt (Kv): 1160
- Voltage: 4S/15V
- Maximum Continuous Current: 80A
- Application: 1/6 Rock Crawling
Includes:
- (1) Firma 1200Kv 1/6 BL Sensored Crawler Motor
