Product Description
Tamiya 1/10 RC Landfreeder Quadtrack Kit, w, TT-02FT Chassis

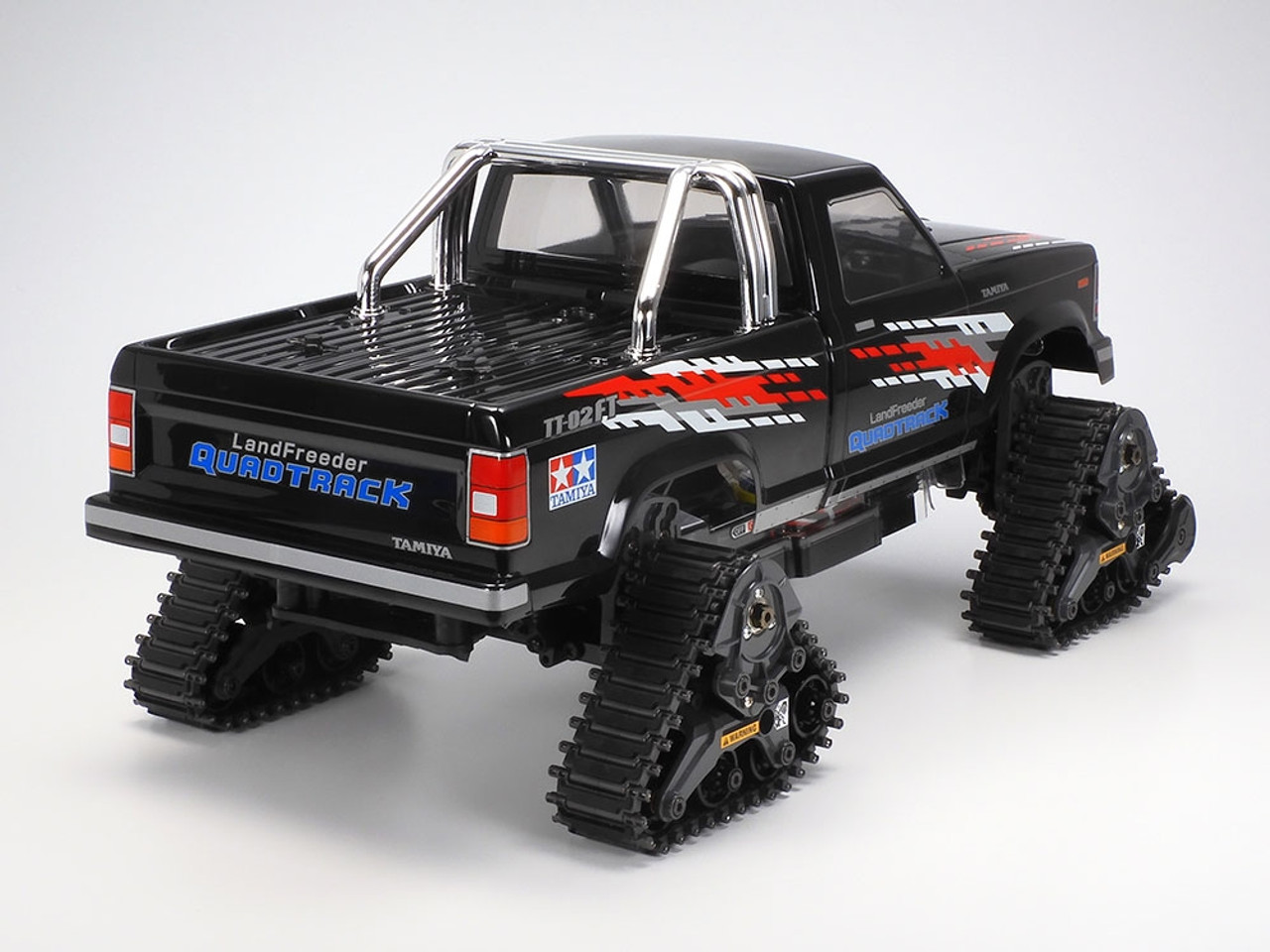

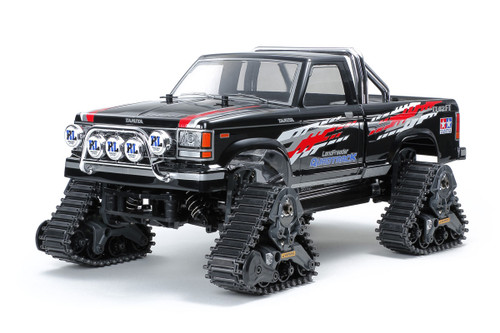

The Landfreeder Quadtrack is a fresh new twist on the fun world of Tamiya R/C. This kit uses a new variant of the TT-02 chassis with three-sided track units in place of the wheels: the result is awesome traction that can be used to take on rough terrain. Furthermore, the polycarbonate truck body comes already pre-painted in Tamiya PS-5 black.
Features:

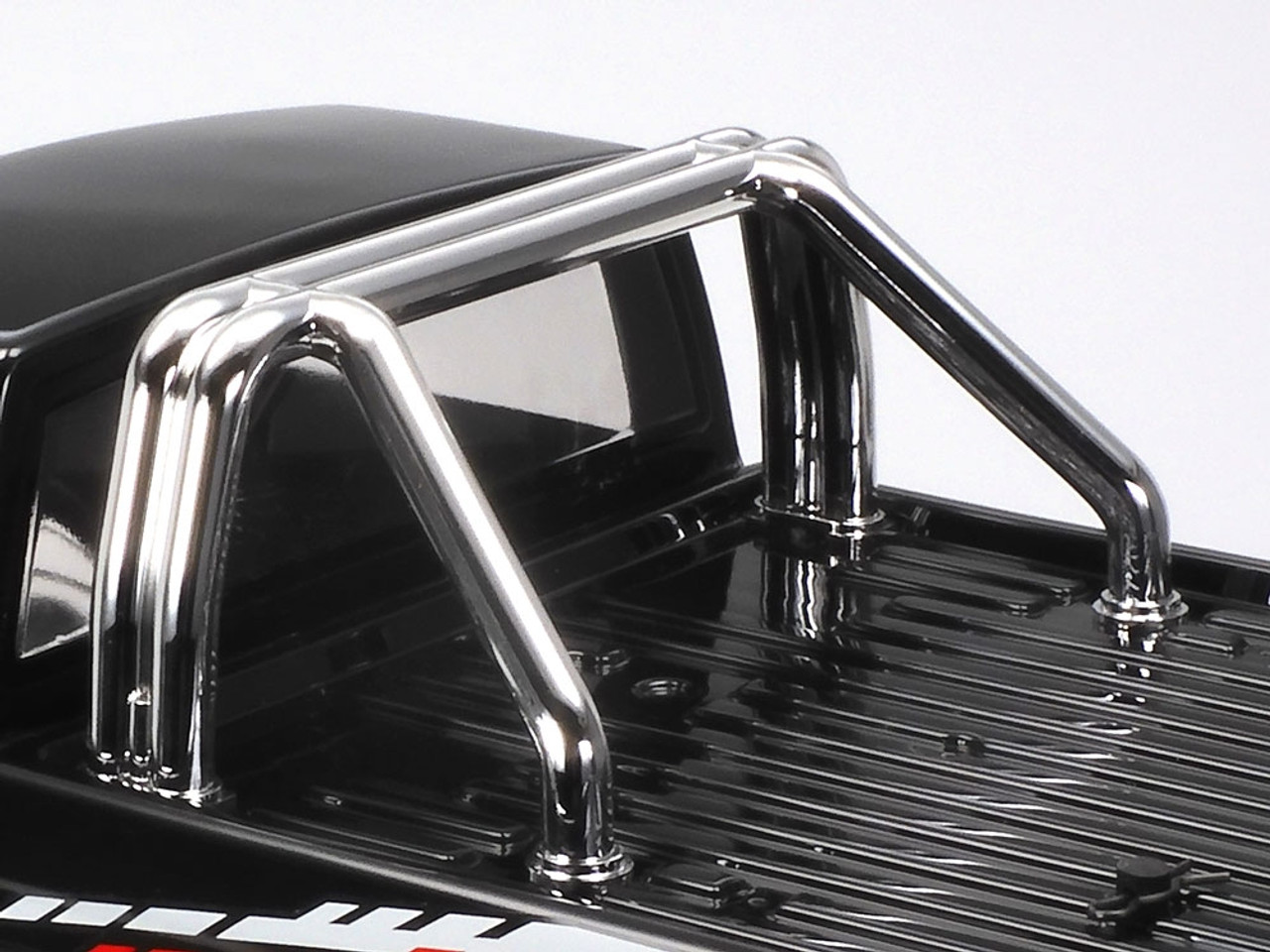

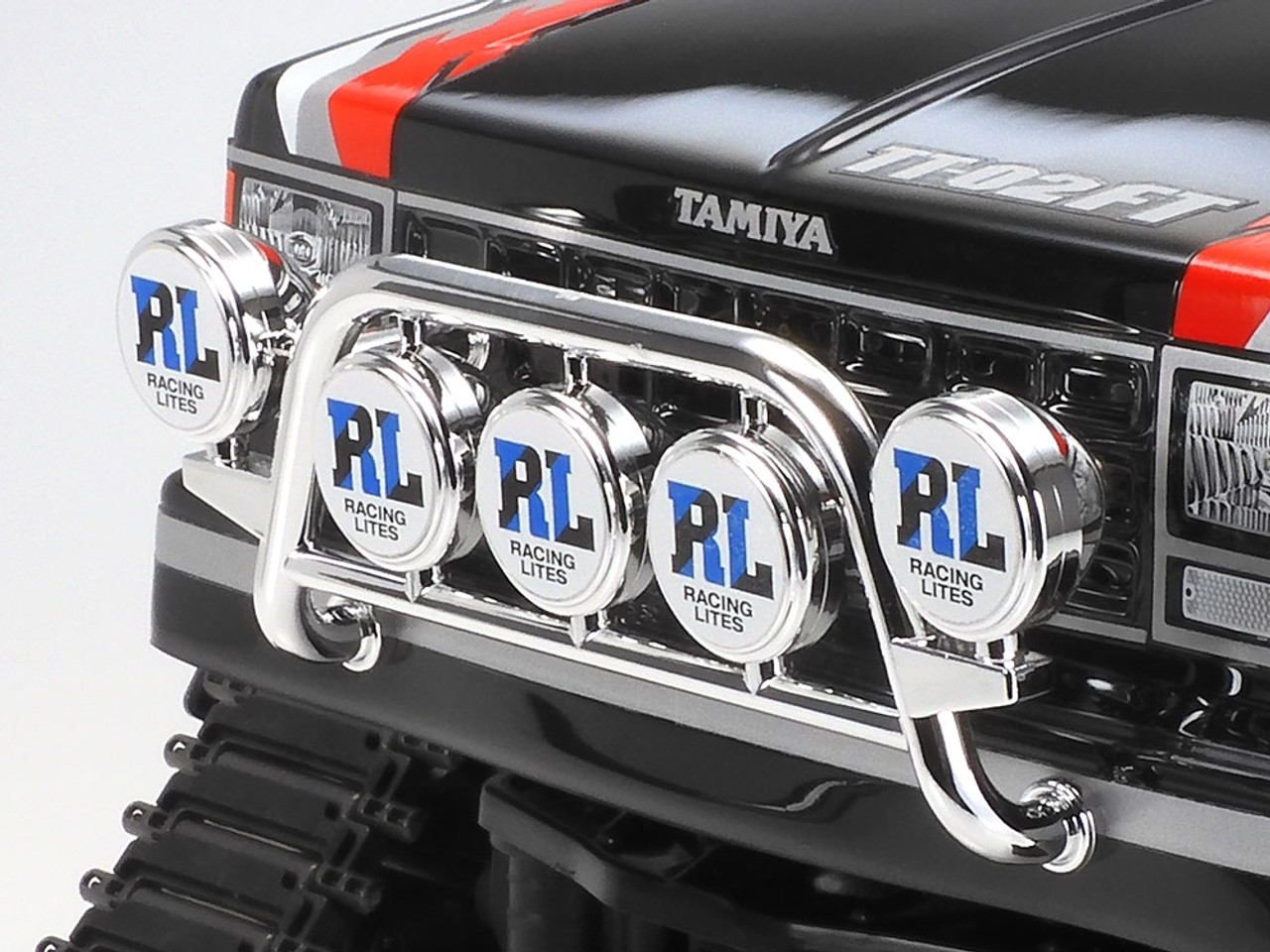

- The Landfreeder body comes molded in polycarbonate, pre-painted Black (PS-5) and with Smoke (PS-31) painted windows. Separate plated parts recreate grille cover, fog lamps and roll bar.

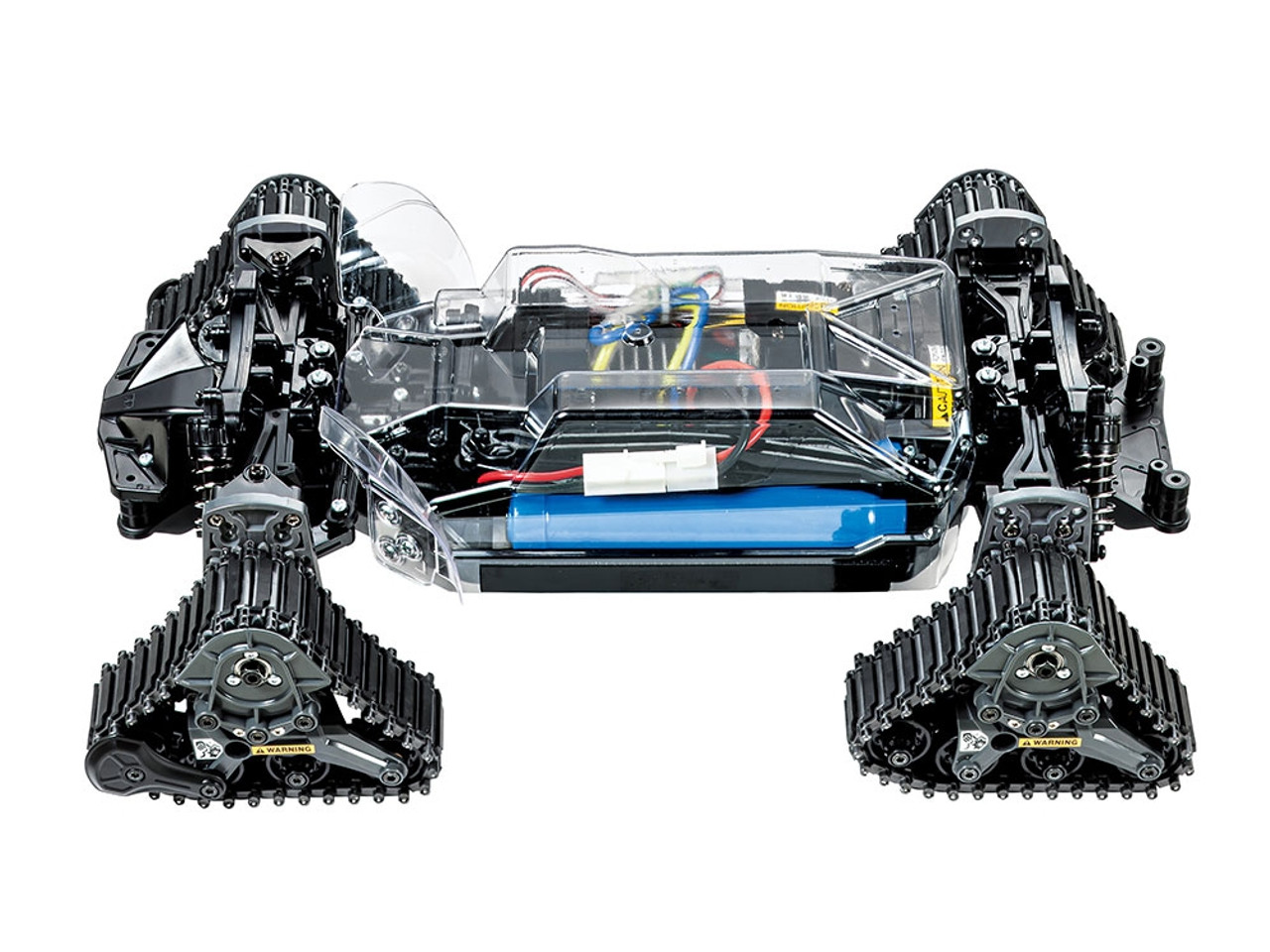

- The TT-02FT is a variant of the TT-02 chassis, with four tracks on its suspension.
- Each of the three-sided track units is 39.3mm in width and has a contact area of 60mm length. Tracks require assembly from link parts, and offer efficient traction.
- Two types of elastomer track link (standard and grouser) are included for setup options.
- Track units are attached to suspension arms via plates, and each features a sprocket and four rollers. The third roller is sprung to further enhance performance.
- Polycarbonate chassis cover and wheel well liners give protection from dust and dirt encountered during off-road driving.
- TT-02 four-bevel differentials and identical suspension arms are used.
SPECIFICATIONS
Length 425
Width 247mm
Adjustable Gear Ratio Yes
Bearings Plastic bushing
Body Material Polycarbonate
Body Stickers Included
Chassis Material ABS Plastic
Chassis Type TT-02FT
Construction Type Assembly Kit
Differential Type Gear
Drive Type 4WD
Electronic Speed Control (esc) Hobbywing THW 1060 Brushed Motor ESC (2-3S)
Motor 540-brushed type
Scale 1/10
Shock Damper CVA Oil Filled
Suspension Fully Independent Double Wishbone
Terrain Use Multi-Purpose
Requires
2-channel radio
Steering servo
7.2-7.4volt battery pack with tamiya style connector and compatible charger.
Includes
(1) 1/10th scale Landfreeder Quadtrack Kit
(1) Brushed ESC
(1) Brushed Motor
Manual and Decals
